TRIDENT

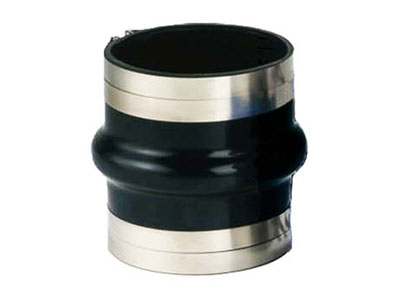

Black EPDM Rubber Hump Bellows
THH Series
Moulded from high temperature black EPDM rubber. Resistant to ozone, salt water, diesel fumes and splash, cold, heat, and aging. Rubber Hump Hose Bellows provide the ultimate flexible connectors for Marine Wet Exhaust Systems. They offer much greater tolerance to heat, misalignment, engine movement and vibration, with significant savings in cost, parts, labour and space. Highest max. continuous operating temps.
SPECIFICATIONS
- Sizes: 3" to 10", 76.2 mm to 254 mm
- Material: Black High Temp EPDM Rubber
- Temperature range: up to 250°F (121°C) .
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards.
- 5 Year Warranty.
| Part No. | ID | OD | Length | Hump OD | Clamp Length | Wall |
|---|---|---|---|---|---|---|
| THH-3 | 3.00 | 3.50 | 5.25 | 4.50 | 2.00 | 0.25 |
| THH-35 | 3.50 | 4.00 | 5.25 | 5.00 | 2.00 | 0.25 |
| THHR-353 | 3.5 x 3 | 4.00 x 3.50 | 5.25 | 5.00 | 2.12 | 0.25 |
| THHR-43 | 4 x 3 | 4.50 x 3.50 | 5.25 | 5.50 | 1.50 | 0.25 |
| THH-4 | 4.00 | 4.50 | 5.25 | 5.37 | 2.00 | 0.25 |
| THH-45 | 4.50 | 5.00 | 5.25 | 5.87 | 1.75 | 0.25 |
| THHR-54 | 5 x 4 | 5.50 x 4.50 | 5.50 | 6.50 | 1.50 | 0.25 |
| THH-5 | 5.00 | 5.50 | 6.00 | 6.12 | 2.25 | 0.25 |
| THHR-65 | 6 x 5 | 6.50 x 5.50 | 6.00 | 7.50 | 1.87 | 0.25 |
