VETUS
Vertical Waterlock
Type NLP

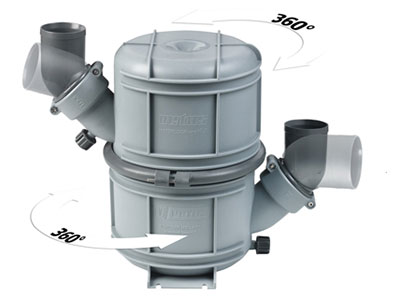

Waterlock/muffler with dual stage construction featuring upper and lower chambers with a horizontal partition plate and a riser tube through the centre. Superior silencing of exhaust noise with minimal back pressure. 360° rotatable top chamber and connectors allows easy installation. Meets the required ABYC standards.
FEATURES
- Gooseneck/muffler and waterlock/muffler combination available
- Extreme flexible exhaust hoses
- Comes with 2 securing straps
Type | Capacity gal. (litre) | A inch (mm) | B inch (mm) | Ø (C) inch (mm) | Ø (D) inch (mm) |
---|---|---|---|---|---|
NLP40 | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 1 9/19 (40) |
NLP45 | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 1 3/4 (45) |
NLP50 | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 2 (51) |
NLP50S | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 2 (51) |
NLP60 | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 2 3/8 (60) |
NLP75 | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 3 (76) |
NLP90 | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 3 1/2 (90) |
Please contact us for more information to find the best solution to your needs.
