HANSEN

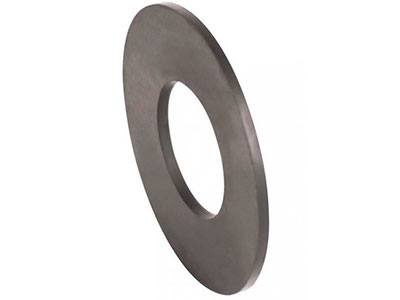

Washer Large
WLP
An accessory washer designed to fit the Hansen Tank fitting.
| Product Size: | Max. Press. @ 20°C | Dimensions | |||
|---|---|---|---|---|---|

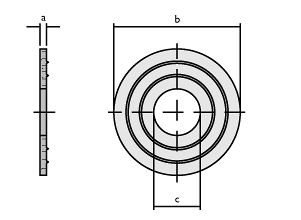

| Metric (BSP) | Imp. (BSP) | a mm | b mm | c mm | |
| 15mm | ½" | 16 Bar | 2.8 | 57.0 | 20.9 |
| 20mm | ¾" | 16 Bar | 2.8 | 63.5 | 26.4 |
| 25mm | 1" | 16 Bar | 3.0 | 73.2 | 33.2 |
| 32mm | 1 ¼" | 16 Bar | 3.0 | 83.5 | 42.6 |
| 40mm | 1 ½" | 16 Bar | 3.3 | 91.3 | 48.0 |
| 50mm | 2" | 16 Bar | 3.3 | 104.2 | 59.8 |
