HANSEN

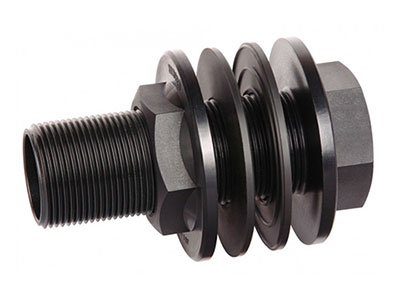

Tank Fitting
SFTFT
Used for connecting valves and pipes to tanks and troughs.
- 15mm to 50mm: external thread BSPT (tapered) on the end merging into a BSPF parallel thread. internal thread BSPT (tapered).
- 80 and 100mm: external nut thread left hand ISO trapezoidal, external end thread and internal thread BSPT (tapered)
- Precision heavy duty tapered threads give a strong reliable seal.

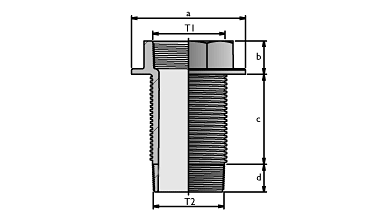

| Product Size (T1-BSPT / T2-BSPF) | Max. Press. @ 20°C | Dimensions | ||||
|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a (mm) | b (mm) | c (mm) | d (mm) | |
| 15mm | ½" | 16 Bar | 56.9 | 20 | 97 | 8 |
| 20mm | ¾" | 16 Bar | 63.4 | 21 | 96 | 9 |
| 25mm | 1" | 16 Bar | 73 | 24 | 95 | 10 |
| 32mm | 1 ¼" | 16 Bar | 83.6 | 25.8 | 93 | 12 |
| 40mm | 1 ½" | 16 Bar | 92 | 26.7 | 93 | 12 |
| 50mm | 2" | 16 Bar | 105.2 | 30.7 | 90 | 15 |
| 80mm | 3" | 10 Bar | 140 | 40 | 110 | 34 |
| 100mm | 4" | 10 Bar | 166 | 47 | 112 | 41 |
| LARGE FITTING: Hole Size for 80mm = 95mm / Hole Size for 100mm = 121mm. | ||||||
