HANSEN

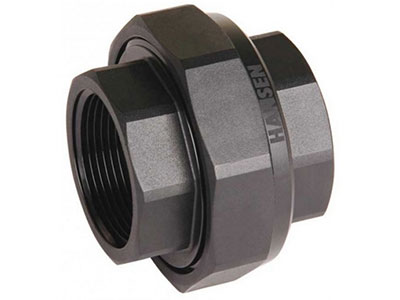

Barrel Union

SBU

Quick connect/disconnect around pumps, tanks, dairy sheds, industry and irrigation.

  • A simple alternative for your pipe work installations around pumps, tanks and irrigation. Features an easy to uninstall slip down action.
  • Fittings provide flexibility and versatility for new and existing installations, saving on time and money.
  • Precision heavy duty tapered threads give a strong reliable seal.
Product Size (T1 x T2)Max.
Press.
@ 20°C
Dimensions
Metric
(BSP)
Imp.
(BSP)
a [AF]
mm
b [AF]
mm
c [AF]
mm

mm
O Ring Sizes
N70
15mm ½" 16 Bar 28.0 28.0 45.0 43.0 18 x 2.5
20mm ¾" 16 Bar 34.0 34.0 51.0 46.0 24 x 2.5
25mm 1" 16 Bar 41.0 41.0 62.0 53.0 30 x 3.0
32mm 1¼ " 16 Bar 51.0 51.0 71.0 55.0 38 x 3.0
40mm 1½ " 16 Bar 58.0 58.0 81.0 64.0 44 x 3.0
50mm 2" 16 Bar 71.0 71.0 96.0 67.0 56 x 3.0
25 x 20 1" x ¾" 16 Bar 41.0 34.0 62.0 53.0 30 x 3.0
32 x 25 1¼" x 1" 16 Bar 51.0 41.0 71.0 55.0 38 x 3.0

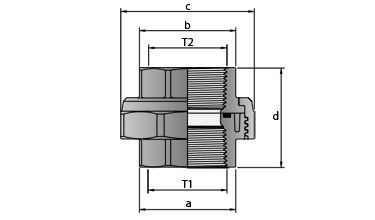

HAN barrel union SBU dwg
