HANSEN

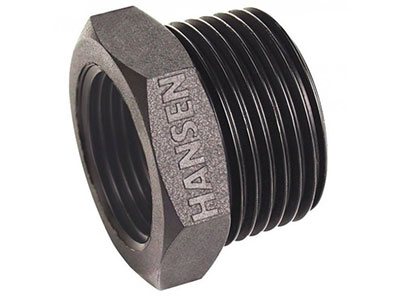

Reducing Bush

SRB

Hansen 'True Fit' threaded pipe fittings are suitable for use above or below gound in varying operating pressures and temperatures. Approved for use with potable (drinkable) water.

FEATURES

  • heavy duty tapered threads gives a strong reliable seal.
  • UV stablized high quality glass fibre reinforced nylon giving all weather, fungi and bacterial resistance.
  • New Zealand made.
Product Size (All threads are tapered)Max.Press.
@ 20°C		Dimensions
Metric (BSP)Imp. (BSP)a (AF) mmb mm
15 x 6mm ½" x 1/8" 16 Bar 22.0 23.3
15 x 8mm ½" x ¼" 16 Bar 22.0 23.3
15 x 10mm ½" x 3/8" 16 Bar 22.0 23.3
20 x 8mm ¾" x ¼" 16 Bar 28.7 24.8
20 x 10mm ¾" x 3/8" 16 Bar 28.7 24.8
20 x 15mm ¾" x ½" 16 Bar 28.7 24.8
25 x 8mm 1" x ¼" 16 Bar 35.3 27.0
25 x 10mm 1" x 3/8" 16 Bar 35.3 27.0
25 x 15mm 1" x ½" 16 Bar 35.3 27.0
25 x 20mm 1" x ¾" 16 Bar 35.3 27.0
32 x 15mm 1¼" x ½" 16 Bar 43.3 31.2
32 x 20mm 1¼" x ¾" 16 Bar 43.5 31.2
32 x 25mm 1¼" x 1" 16 Bar 43.5 31.2
40 x 15mm 1½" x ½" 16 Bar 50.0 33.2
40 x 20mm 1½" x ¾" 16 Bar 50.4 33.2
40 x 25mm 1½" x 1" 16 Bar 50.4 33.2
40 x 32mm 1½" x 1¼" 16 Bar 50.4 33.2
50 x 15mm 2" x ½" 16 Bar 61.5 38.0
50 x 20mm 2" x ¾" 16 Bar 61.5 38.2
50 x 25mm 2" x 1" 16 Bar 61.5 38.2
50 x 32mm 2" x 1¼" 16 Bar 61.5 38.2
50 x 40mm 2" x 1½" 16 Bar 61.5 38.2
65 x 32mm 2½" x 1¼" 12 Bar 78.2 42.0
65 x 40mm 2½" x 1½" 12 Bar 78.2 42.0
65 x 50mm 2½" x 2" 12 Bar 78.2 42.0
80 x 40mm 3" x 1½" 10 Bar 92.0 45.0
80 x 50mm 3" x 2" 10 Bar 92.0 45.0
80 x 65mm 3" x 2½" 10 Bar 92.0 45.0
100 x 50mm 4" x 2" 10 Bar 117.0 51.0
100 x 65mm 4" x 2½" 10 Bar 117.0 51.0
100 x 80mm 4" x 3" 10 Bar 117.0 51.0

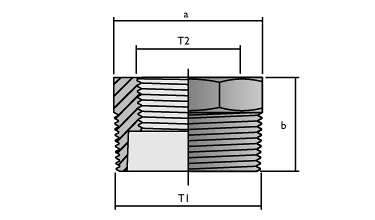

HAN red bush SRB D
