HANSEN

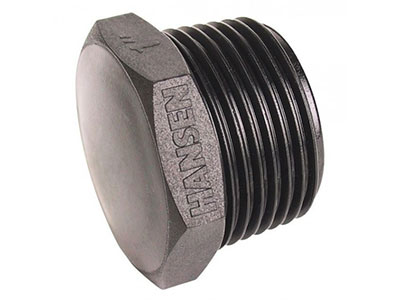

Hex Screw Plug
SP
Used for plugging off female threads.
Hansen 'True Fit' threaded pipe fittings are suitable for use above or below gound in varying operating pressures and temperatures. Approved for use with potable (drinkable) water.
FEATURES
- Heavy duty tapered threads gives a strong reliable seal.
- UV stablized high quality glass fibre reinforced nylon giving all weather, fungi and bacterial resistance.
- New Zealand made.

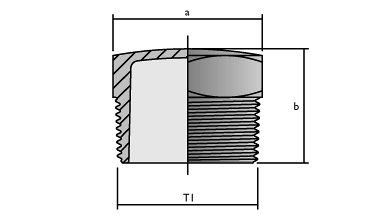

| Product Size: | Max. Press. @ 20°C | Dimensions | |||
|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | T1 BSPT | a (AF) mm | b mm | |
| 6mm | 1/8" | 16 Bar | 1/8” (06mm) | 11.0 | 16.3 |
| 8mm | ¼" | 16 Bar | ¼” (08mm) | 14.1 | 20.4 |
| 10mm | 3/8" | 16 Bar | 3/8” (10mm) | 18.2 | 21.4 |
| 15mm | ½" | 16 Bar | ½” (15mm) | 23.3 | 25.6 |
| 20mm | ¾" | 16 Bar | ¾” (20mm) | 30.5 | 27.8 |
| 25mm | 1" | 16 Bar | 1” (25mm) | 36.3 | 29.2 |
| 32mm | 1¼" | 16 Bar | 1¼” (32mm) | 44.4 | 31.8 |
| 40mm | 1½" | 16 Bar | 1½” (40mm) | 50.8 | 37.4 |
| 50mm | 2" | 16 Bar | 2” (50mm) | 62.1 | 39.4 |
| 65mm | 2½" | 12 Bar | 2½” (65mm) | 78.0 | 48.5 |
| 80mm | 3" | 10 Bar | 3” (80mm) | 91.0 | 51.8 |
| 100mm | 4" | 10 Bar | 4” (100mm) | 115.6 | 59.0 |
