HANSEN

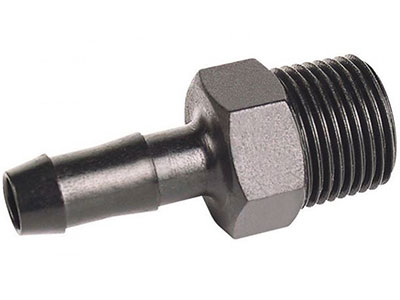

Reducing Male Hose Tail
SRMHT
Used for connecting female threads to flexible pipe and hose, i.e. thin wall irrigation tubing, suction and rubber hoses. Push on hose and use a hose clip to hold hose on.
| Product Size: | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | T1 BSPT | a (AF) mm | b mm | c mm | d mm | |
| 8 x 6mm | ¼" x 1/8" | 16 Bar | ¼” (08mm) | 13.9 | 7.6 | 22.2 | 42.7 |
| 8 x 10mm | ¼" x 3/8" | 16 Bar | ¼” (08mm) | 13.9 | 10.8 | 25.8 | 46.5 |
| 10 x 6mm | 3/8" x 1/8" | 16 Bar | 3/8” (10mm) | 17.9 | 7.6 | 22.2 | 43.3 |
| 10 x 8mm | 3/8" x ¼" | 16 Bar | 3/8” (10mm) | 17.9 | 9.5 | 23.7 | 44.7 |
