HANSEN

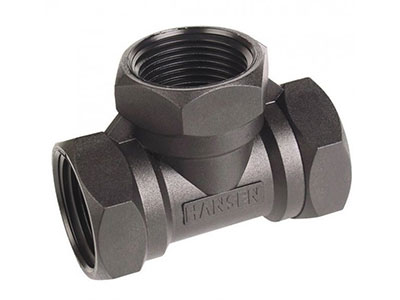

Female Threaded Tee
ST
Used to connect three male threads. Precision heavy duty tapered threads give a strong reliable seal.

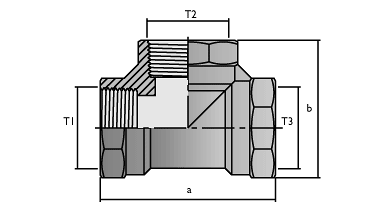

| Product Size 'T1, T2, T3' | Max. Press. @ 20°C | Dimensions | ||
|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a (mm) | b (mm) | |
| 15mm | ½" | 16 Bar | 60 | 46.5 |
| 20mm | ¾" | 16 Bar | 67.5 | 53.5 |
| 25mm | 1" | 16 Bar | 80.3 | 63.8 |
| 32mm | 1 ¼" | 16 Bar | 93.5 | 76 |
| 40mm | 1 ½" | 16 Bar | 104 | 80.8 |
| 50mm | 2" | 16 Bar | 119.8 | 95.5 |
| 65mm | 2 ½" | 12 Bar | 140.5 | 115.5 |
| 80mm | 3" | 10 Bar | 160.5 | 133.5 |
| 100mm | 4" | 10 Bar | 197 | 165 |
