HANSEN

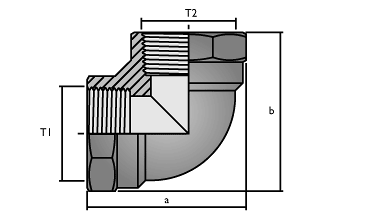

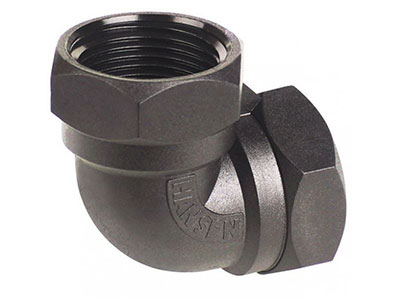

Female Threaded Elbow
SE
Used to connect two male threads at a 90 degree angle.
| Product Size: | Max. Press. @ 20°C | Dimensions | ||
|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a mm | b mm | |
| 15mm | ½" | 16 Bar | 46.5 | 46.5 |
| 20mm | ¾" | 16 Bar | 53.5 | 53.5 |
| 25mm | 1" | 16 Bar | 63.8 | 63.8 |
| 32mm | 1 ¼" | 16 Bar | 76.0 | 76.0 |
| 40mm | 1 ½" | 16 Bar | 80.8 | 80.8 |
| 50mm | 2" | 16 Bar | 95.5 | 95.5 |
| 65mm | 2 ½" | 12 Bar | 114.5 | 114.5 |
| 80mm | 3" | 10 Bar | 133.5 | 133.5 |
| 100mm | 4" | 10 Bar | 164.5 | 164.5 |
