KAHLENBERG

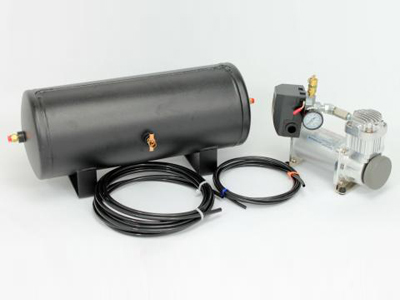

P449-23/24 Compressor Kit
The Kahlenberg Horn Air Compressor Model P449-23/P449-24 Compressed Air Systems are quiet, oil-less compressor solutions incorporating a compact, continuous duty compressor pump, pressure switch, air gauge, and all tubing and fittings specifically arranged for marine use.
SPECIFICATIONS
| P449-23 | P449-24 | |
|---|---|---|
| Voltage: | 12 V DC | 24 V DC |
| Max Current: | 21 A @ 12 Volts | 12 A @ 24 Volts |
| FAD @ 7 bar: | 85 CFM, 24 l/min | |
| Max Pressure: | 150 psi, 10.31 bar | |
| Weight: | 20 lbs , 9 kg, Compressor and Tank | |
| Noise Level: | 69 dB(A) @ 1 metre | |
| Thermal Protection: | Yes | |
| Duty Cycle: | 33% | |
| Vibration Isolated: | Yes | |
| Wire Size: | 12 AWG min | |
