HONDA
Medium Duty Pumps

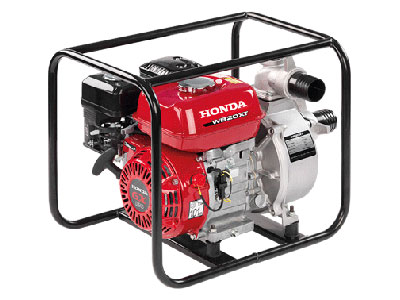

Model WB20

A reliable 2" portable pump with an impressive Honda GX120 engine; the WB20 can deliver 600 litre per minutes.

Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.

With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.

With capacity to deliver 600 litres per minute, this 2" Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m. Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.

It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.

SPECS

Product Code WB20XT3DRXU
Engine GX120
Displacement (cc) 118cc
Fuel Type Unleaded
Fuel Tank Capacity 2.5 litres
Fuel Consumption 1 l/hr
Total Head 32m
Suction Head 8m
Maximum Pumping Capacity 600 l/min
Suction Port Diameter 50mm
Discharge Port Diameter 50mm
Self Priming Time (at 5m) 110 sec at 5m
Pump Type Centrifugal volume pump
Oil Alert Yes
Dimensions (L x W x H ) (mm) 455 x 365 x 420
Dry weight (kg) 21
Mounting Type Rubber
Hose Band/Stainer Yes
